The Role of Hot Runner Valve Gates in Preventing Gate Vestige on PET Preforms

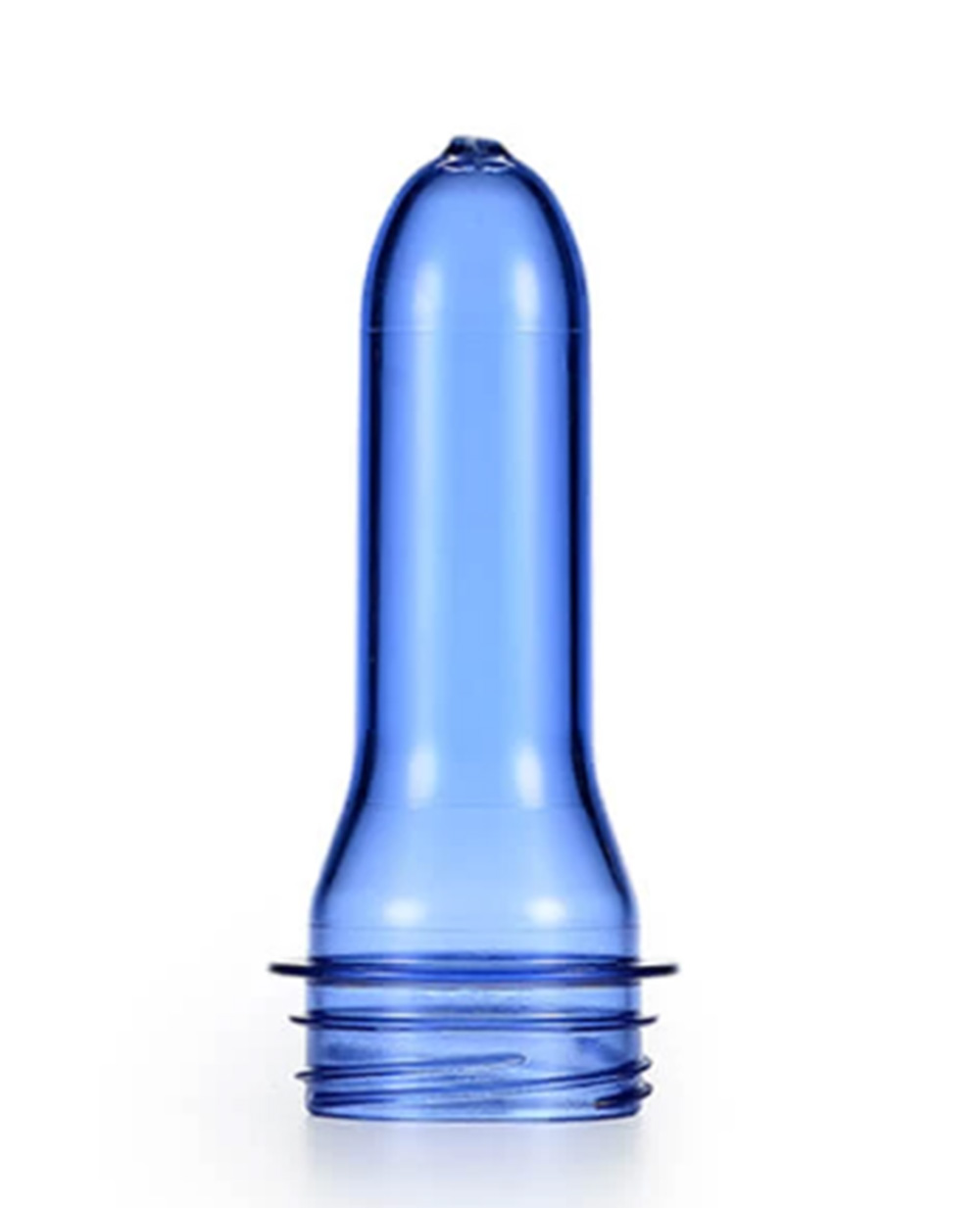

In the production of high-quality PET preforms, one of the most critical yet often overlooked details is the quality of the gate vestige—the small mark left on the preform where the molten plastic enters the cavity. For manufacturers producing clear beverage bottles or high-clarity packaging, an imperfect gate vestige can mean the difference between a premium product and one that is rejected. At ZSMOLD, a professional PET preform mold manufacturer, we understand that eliminating gate vestige defects is fundamental to delivering preforms that meet the stringent demands of the packaging industry. This article delves into the engineering principles behind hot runner valve gate technology and how it ensures pristine preform quality.


Understanding Gate Vestige: More Than Just a Cosmetic Flaw

Gate vestige refers to the residual material left at the injection point after the preform is ejected. In open hot runner systems, the gate relies on precise thermal balance to freeze and seal, which can lead to stringing, drool, or an uneven surface. For PET applications, which have a narrow processing window (260–280°C), uncontrolled gate vestige can cause:

  • Stringing: Thin filaments of molten PET that remain attached to the preform.
  • Burn Marks: Degraded material at the gate due to excessive heat or shear.
  • Dimensional Inconsistencies: Uneven gate marks affect downstream handling and blowing.
  • Rejection Rates: Even minor gate marks can lead to product rejection in high-end applications.

The Valve Gate Advantage: Precision Through Mechanical Sealing

Unlike open gates that rely on thermal control to freeze the material, a valve gate uses a mechanical pin—typically pneumatically or hydraulically actuated—to physically seal the gate after the cavity is filled. This approach offers distinct advantages for PET preform molding:

1. Elimination of Stringing and Drool

By mechanically cutting off the melt flow, valve gates prevent the formation of residual filaments. This eliminates the need for post-mold trimming and ensures a clean, flush surface at the gate. For high-cavitation molds, this is essential for maintaining consistent production quality.

2. Superior Gate Vestige Quality

The precise timing of the valve pin ensures that the gate is sealed at the optimal moment, leaving a vestige that is often imperceptible. ZSMOLD's valve gate systems are engineered to maintain gate vestige protrusion within ±0.1mm, a standard that meets the requirements of even the most demanding beverage brands [citation:1].

3. Flexibility for Larger Preforms

Valve gates allow for larger gate diameters, which reduces shear heat and injection pressure—critical for sensitive materials like PET. This capability is essential for molding heavier preforms (e.g., 5-gallon water bottles) where open gates would fail due to high thermal stress [citation:10].

Engineering Excellence: How ZSMOLD Implements Valve Gate Technology

At ZSMOLD, the integration of valve gate systems is approached holistically, ensuring that every component of the mold contributes to perfect gate performance.

1. Precision-Machined Valve Components

ZSMOLD utilizes state-of-the-art machining equipment to achieve ultra-precise tolerances on valve pins and nozzles. Our standard valve pin accuracy is maintained at ±0.005mm, ensuring that the pin seals the gate consistently with zero leakage [citation:6]. This level of precision eliminates the common issue of gate freeze-off or incomplete sealing.

2. Balanced Hot Runner Manifold Design

A well-balanced hot runner is the backbone of consistent preform quality. ZSMOLD's manifolds are designed to provide equal flow and pressure to every nozzle, ensuring that the valve gate in each cavity operates under identical conditions. Our fully balanced manifolds guarantee a tight tolerance of preform weight and dimensions, critical for achieving uniform gate quality across all cavities [citation:7][citation:10].

3. Advanced Temperature Control

Each valve gate nozzle is equipped with independent temperature controllers, allowing us to fine-tune the melt temperature for each cavity. This prevents thermal variations that could cause inconsistencies in gate vestige or lead to stringing. ZSMOLD's systems utilize point-to-point PID control, ensuring thermal stability even in high-cavitation molds [citation:5].

4. High-Performance Steel and Coatings

The durability of valve gate components is critical for long-term performance. ZSMOLD manufactures valve pins and seats from high-grade materials such as S136 and SKH51, heat-treated to HRC 58–61 for maximum wear resistance [citation:8][citation:6]. This ensures that the valve gate maintains its sealing integrity over millions of cycles.

From Theory to Reality: ZSMOLD's Proven Performance

ZSMOLD's valve gate technology is not theoretical—it is proven in the field. Our preform molds are designed for hot runner systems that:

  • Reduce material waste by eliminating sprues and runners [citation:3].
  • Lower injection pressure by up to 15-20%, reducing wear on mold components and saving energy [citation:3].
  • Extend mold life through robust design and premium materials.

Our molds are capable of processing PET, PETG, and a wide range of polymers, with applications spanning beverage, food, personal care, and industrial bottles [citation:3][citation:7]. With ZSMOLD, you are not just investing in a mold; you are investing in a complete solutions provider dedicated to maximizing your production efficiency.

Conclusion

The gate vestige is a small detail with significant consequences for preform quality and production efficiency. Hot runner valve gate technology, when implemented with precision, provides the definitive solution for eliminating gate-related defects. ZSMOLD's expertise in precision machining, balanced manifold design, and advanced thermal control ensures that our preform molds deliver flawless gate quality, cycle after cycle. For manufacturers seeking the highest standards in PET preform molding, ZSMOLD stands as the trusted partner for advanced, reliable mold solutions.
