How ZSMOLD Preform Molds Ensure Cavity-to-Cavity Consistency in High-Cavitation Molding

How ZSMOLD Preform Molds Ensure Cavity-to-Cavity Consistency in High-Cavitation Molding

In the competitive world of PET packaging, high-cavitation preform molds—ranging from 48 to 144 cavities—are the industry standard for achieving high-volume production. However, with great cavity count comes a great challenge: ensuring every single preform is identical. A variation in weight, wall thickness, or dimensional accuracy in just one cavity can lead to significant material waste, production delays, and compromised bottle quality.

At ZSMOLD, we don't just build molds; we engineer precision solutions. As a professional PET preform mold manufacturer, we have mastered the science of eliminating cavity-to-cavity variation. This article dives deep into the engineering principles and cutting-edge technologies that allow ZSMOLD high-cavitation molds to deliver unparalleled consistency, cycle after cycle.


The Physics of Imbalance: Why Consistency Fails in High-Cavitation Molds

Before understanding the solution, it's crucial to identify the core problem. Many mold makers assume that if cavities are geometrically balanced—meaning each flow path looks identical on a blueprint—the melt will fill them evenly. This assumption is false.

Industry experts have identified that up to 60-70% of product variation in multi-cavity molds is not due to machining tolerances, but to shear-induced imbalance within the runner system [citation:4]. As molten PET flows through the runner, friction creates a temperature gradient: the melt near the channel walls is hotter and less viscous than the melt in the center. When this uneven melt splits at a branch, it sends inconsistent material to different cavities, resulting in different weights, pressures, and fill times [citation:4].

To achieve true cavity-to-cavity consistency, a mold must compensate for these natural physical phenomena. This is where ZSMOLD's engineering expertise sets us apart.

ZSMOLD's Engineering Blueprint for Cavity-to-Cavity Consistency

ZSMOLD's methodology for ensuring consistency in high-cavitation molding is built on a foundation of advanced simulation, precision manufacturing, and intelligent system integration. Our approach addresses every variable that contributes to imbalance.

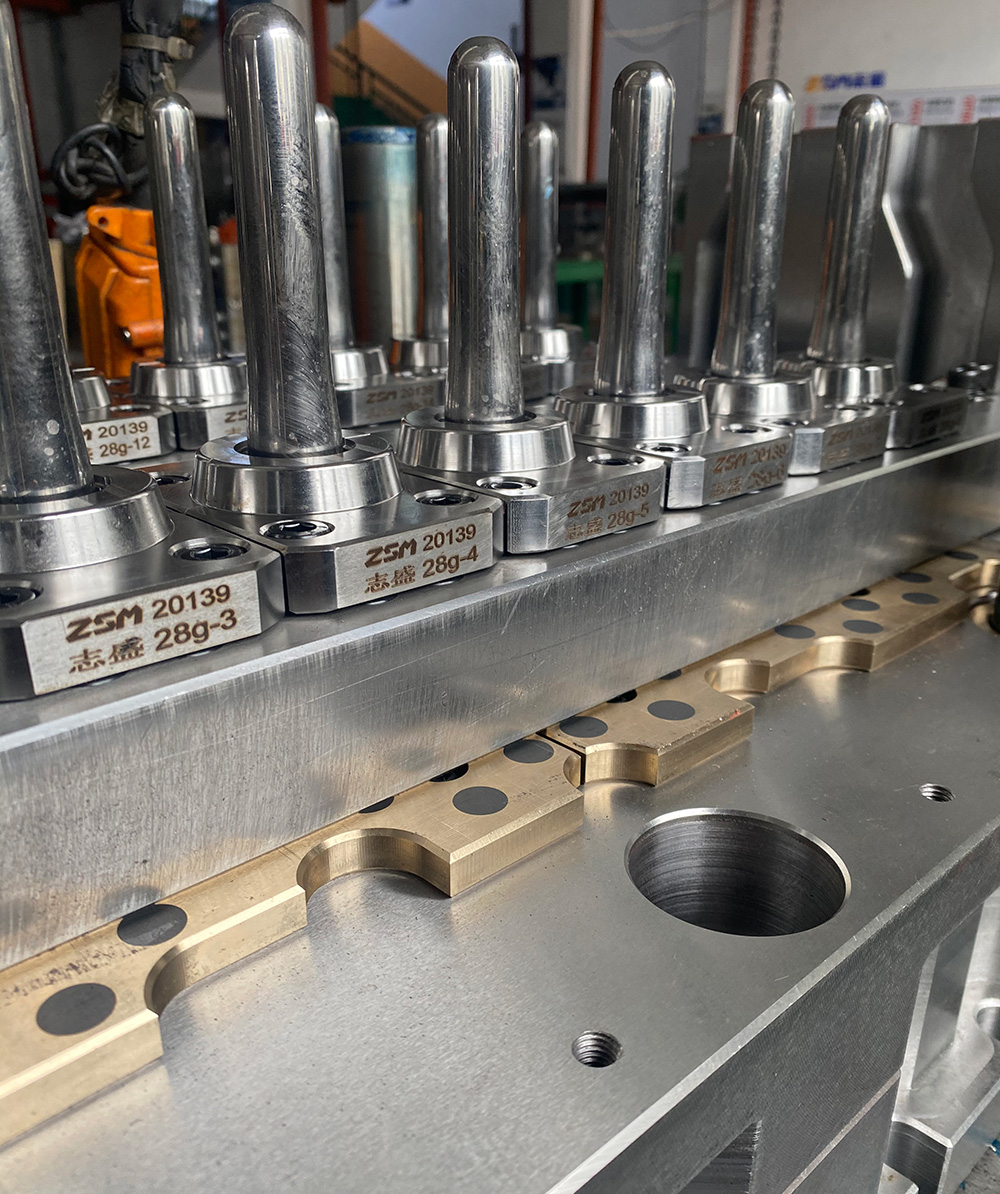

1. High-Precision Machining with Tight Tolerances

The foundation of consistency is physical precision. ZSMOLD utilizes state-of-the-art 5-axis CNC machining and EDM equipment to ensure that every cavity is a perfect replica of the master design. We maintain machining tolerances down to ±0.005mm, guaranteeing that steel variation does not contribute to part variation [citation:6]. This level of precision ensures that if every cavity receives the same melt, they will produce identical preforms.

2. Advanced Rheological Flow Simulation

At ZSMOLD, we don't guess; we predict. Our engineering process begins with advanced CAE/CAD/CAM software to simulate the entire injection process. This includes mold flow analysis that visualizes melt front progression, pressure distribution, and temperature gradients. We use this data not just to validate a design, but to optimize it. We identify and correct potential flow imbalances caused by shear heating and runner layout before the first piece of steel is cut [citation:6].

3. Perfectly Balanced Hot Runner Systems

The hot runner is the heart of a multi-cavity preform mold. A poorly designed hot runner is the primary source of inconsistency. ZSMOLD addresses this by integrating high-performance hot runner systems with a focus on absolute thermal and hydraulic balance. Our design incorporates:

  • Geometric and Rheological Balance: The hot runner manifolds are designed so that the flow path to each and every cavity has identical length and geometry, ensuring equal pressure drop. We go a step further by analyzing the rheological balance to counter the shear-induced imbalance that standard "naturally balanced" runners cannot avoid [citation:4].
  • Individual Zone Control: Each nozzle is equipped with independent temperature controllers, allowing us to fine-tune the melt temperature for each cavity to compensate for any thermal variations in the system. This ensures that every drop of PET entering the cavity is of identical viscosity and temperature.
  • Valve Gate Technology: ZSMOLD utilizes advanced valve gate systems that provide precise control over the filling and packing phases. This prevents the "gate vestige" and "stringing" issues common in PET molding, ensuring a clean, consistent part every time.

4. 3D Conformal Cooling for Uniform Shrinkage

Consistency doesn't end when the cavity is filled. Uneven cooling is a leading cause of dimensional variation and warpage. ZSMOLD implements advanced 3D conformal cooling channels. Instead of traditional straight-line cooling, these channels follow the contour of the preform shape, allowing for uniform heat extraction [citation:6]. This ensures that every preform cools at the same rate, resulting in predictable, uniform shrinkage and eliminating stresses that could cause variation.

5. Rigorous Testing and Validation

Before any ZSMOLD mold leaves our factory, it undergoes a comprehensive Factory Acceptance Test (FAT). We run actual production-grade PET material to validate:

  • Weight Consistency: We measure preforms from all cavities to ensure a weight tolerance of typically ±0.1g, confirming excellent cavity-to-cavity balance [citation:6].
  • Wall Thickness Distribution: We analyze the uniformity of the preform wall to guarantee optimal performance during the blow molding process.
  • Hot Runner Performance: We verify that all zones are operating within their specified temperature and pressure parameters.

The ZSMOLD Advantage: Why Choose Us for High-Cavitation Projects?

As a specialized PET preform mold manufacturer, ZSMOLD's expertise extends beyond just creating a metal block with cavities. We are a PET preform solutions provider. Our commitment to consistency is a commitment to your bottom line.

  • Lowest Conversion Cost: By ensuring every cavity produces a perfect part, ZSMOLD molds eliminate the waste and downtime associated with quality rejects.
  • Superior Process Capability: Our molds are designed to provide a wide processing window, making them less sensitive to fluctuations in material or machine conditions. This robustness translates to long-term reliability and a low total cost of ownership.
  • Proven Performance: Our molds are operating globally in high-volume production environments, delivering consistent, high-quality preforms for the beverage, food, and personal care industries. We provide solutions for 48, 72, 96, and 144-cavity configurations [citation:6].

Conclusion: Consistency is Not Luck, It's Engineering

High-cavitation molding is a complex process, but achieving perfect cavity-to-cavity consistency is not a mystery. By combining advanced simulation, precision manufacturing, balanced hot runner technology, and uniform cooling, ZSMOLD engineers molds that deliver unparalleled repeatability. We don't just build tools; we build the foundation for your success.

Ready to produce millions of identical, high-quality preforms? Contact ZSMOLD today to discuss your next project.
