ZSMOLD Solution for Common Cap Defects: Short Shots, Flash, and Warpage

Short shots. Flash. Warpage. These three defects plague cap manufacturers worldwide. They cause rejected parts, wasted material, frustrated operators, and unhappy customers. Worst of all, many manufacturers accept these defects as "normal" — believing that some level of scrap is simply the cost of doing business.

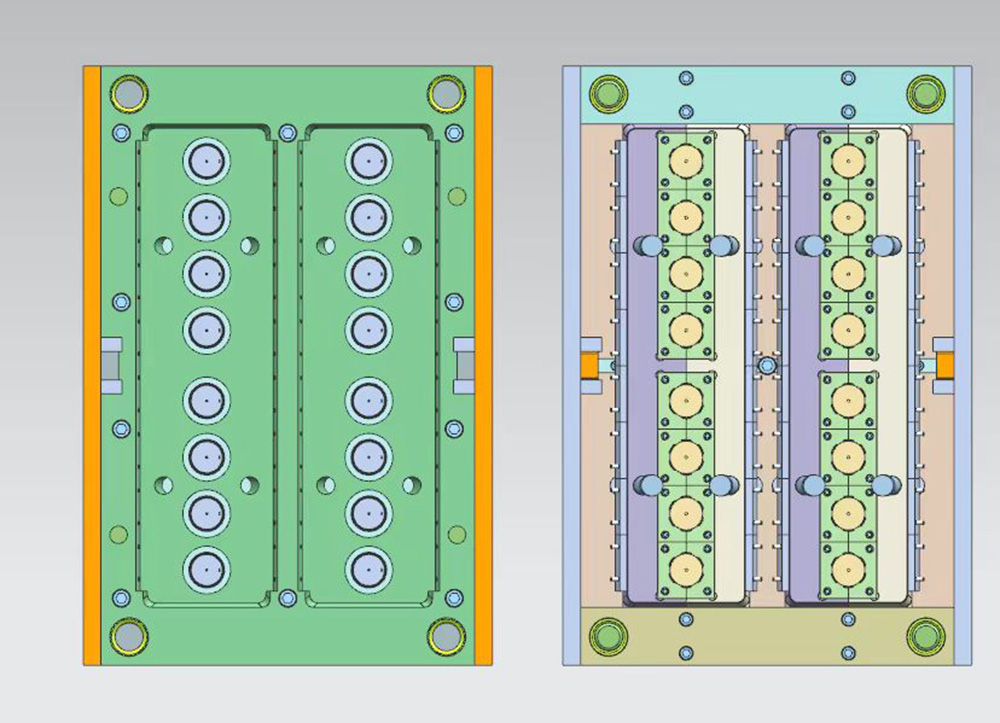

ZSMOLD disagrees. With proper mold design, precision manufacturing, and disciplined maintenance, these common defects can be virtually eliminated. This article explains the root causes of short shots, flash, and warpage — and provides ZSMOLD's proven solutions for each.

---

Part 1: Short Shots — Incomplete Filling

What Is a Short Shot?

A short shot occurs when molten material does not completely fill the cavity before the material freezes. The resulting cap is missing material in some areas — typically the farthest point from the gate or thin sections like tamper bands.

Root Causes of Short Shots

ZSMOLD Solutions for Short Shots

Solution 1: Optimized Gate Design

Problem: Gate freezes too early, stopping flow before cavity fills.

ZSMOLD solution:

• Gate size calculated specifically for cap geometry and material

• Gate location positioned for shortest flow path to critical areas

• Valve gate with adjustable opening profile for precise flow control

Result: Material flows completely into the cavity before any freezing occurs.

Solution 2: Advanced Venting

Problem: Air trapped in the cavity creates back-pressure that stops material flow.

ZSMOLD solution:

• Precision-ground venting depths (0.02–0.05mm typical for caps)

• Vent placement at last points to fill (tamper band tips, hinge areas)

• Ejector pin clearance used as additional venting paths

• Vacuum assist option for difficult cap geometries

Result: Air escapes freely; material fills completely.

Solution 3: Balanced Hot Runner Flow

Problem: Some cavities receive less material or lower pressure than others.

ZSMOLD solution:

• Geometrically balanced runner design

• Individual nozzle temperature control

• Optional dynamic pressure balancing for high-cavitation molds

Result: Every cavity fills identically — no short shots in specific positions.

Solution 4: Material and Temperature Optimization

ZSMOLD support:

• Recommended processing parameters provided with each mold

• Melt temperature range specific to your cap material (HDPE, PP, PET)

• Mold temperature guidelines for optimal flow

Result: Operators have clear, validated settings to prevent short shots.

---

Part 2: Flash — Excess Material at Parting Lines

What Is Flash?

Flash is a thin layer of excess material that escapes from the cavity at the parting line, ejector pins, or other mold component interfaces. Flash creates sharp edges, assembly problems, and an unacceptable appearance.

Root Causes of Flash

ZSMOLD Solutions for Flash

Solution 1: Precision Machined Parting Line

Problem: Uneven or worn parting surfaces allow material to escape.

ZSMOLD solution:

• Parting line surfaces machined to flatness within 0.01mm

• Hardened steel (HRC 50–55) on critical parting surfaces

• Regular reconditioning service for worn molds

Result: No gaps exist for material to escape.

Solution 2: Robust Mold Clamping Design

Problem: Injection pressure forces mold plates apart.

ZSMOLD solution:

• Thicker mold plates for reduced deflection

• Strategic support pillar placement behind cavities

• Pre-stressed guide systems maintain alignment under pressure

Result: Mold remains closed even at maximum injection pressure.

Solution 3: Optimized Venting Depth

Problem: Vents cut too deep become flash channels.

ZSMOLD solution:

• Vent depths precisely controlled: 0.02–0.05mm (typical for cap materials)

• Vent lands kept short (1–2mm) to minimize flash potential

• Clean-out grooves behind vents to trap any minimal flash

Result: Vents release air but not material.

Solution 4: Material-Specific Clearance Design

Problem: Different materials have different flow characteristics.

ZSMOLD solution:

Result: Clearances matched to material viscosity — no flash.

---

Part 3: Warpage — Dimensional Distortion

What Is Warpage?

Warpage is unintended bending, twisting, or distortion of the cap after ejection. Warped caps may not seal properly, may jam capping machines, or may fail in the field.

Root Causes of Warpage

ZSMOLD Solutions for Warpage

Solution 1: Uniform Cooling Design

Problem: Temperature differences across the cap create uneven shrinkage.

ZSMOLD solution:

• Conformal cooling channels follow cap geometry

• Multiple independent cooling zones

• Temperature uniformity maintained under 2°C across all cavities

Result: Every part of every cap cools at the same rate — no thermal-induced warpage.

Solution 2: Balanced Gate Placement

Problem: Material flow orientation creates stresses that release as warpage.

ZSMOLD solution:

• Gate location optimized for symmetrical filling

• Multiple gates for large caps or difficult geometries

• Flow simulation validates fill patterns before manufacturing

Result: Balanced fill reduces molded-in stresses.

Solution 3: Optimized Ejection System

Problem: Ejector pins push on hot, soft caps, causing distortion.

ZSMOLD solution:

• Increased ejector pin count (more pins, less force per pin)

• Larger diameter pins to spread ejection force

• Air-assist ejection (burst of air releases cap before pin contact)

• Ejection timing optimized (eject only after sufficient cooling)

Result: Caps release cleanly without distortion.

Solution 4: Thickness Uniformity

Problem: Thick sections shrink more than thin sections, causing warpage.

ZSMOLD solution:

• Cavity/core concentricity maintained within ±0.015mm

• Wall thickness variation kept under 3%

• Simulation identifies thick/thin areas before mold build

Result: Consistent wall thickness means consistent shrinkage — no warpage.

Solution 5: Proper Cooling Time Guidance

ZSMOLD support:

• Recommended minimum cooling time provided for each mold

• Cooling time calculator based on cap weight, material, and thickness

• Process monitoring recommendations to ensure cooling consistency

Result: Operators know exactly how long to cool for warp-free caps.

---

Quick Reference: Defect Troubleshooting Guide

---

Real-World Case Study: Eliminating All Three Defects

Customer: Carbonated soft drink cap manufacturer

The problem: Their 64-cavity injection mold produced caps with:

• Short shots on 2–3% of cavities (tamper band incomplete)

• Flash on 1–2% of caps (parting line)

• Warpage causing capping machine jams (3–4 stoppages per shift)

ZSMOLD solution provided:

• New 64-cavity injection mold with:

  • Optimized gate design (larger diameter, better location)

  • Precision-ground venting (0.03mm depth)

  • Conformal cooling with 5 zones

  • Hardened parting line surfaces (HRC 52)

  • 32 ejector pins (up from 20)

  • Air-assist ejection

Results after installation:

Annual savings: $185,000 (material + downtime + labor)

Customer quote: "We thought short shots, flash, and warpage were just part of cap molding. ZSMOLD proved us wrong. Our line has never run this clean."

---

Prevention Is Better Than Cure: Design for Zero Defects

The best way to eliminate defects is to prevent them in mold design. ZSMOLD's design process includes:

1. Mold flow simulation — predicts filling, packing, cooling, and warpage

2. Design review — identifies potential defect risks before manufacturing

3. Material-specific optimization — designs tailored to HDPE, PP, or PET

4. Validation testing — short shots, weight distribution, and dimensional verification

---

Conclusion

Short shots, flash, and warpage are not inevitable. They are symptoms of correctable problems in mold design, manufacturing, or operation. ZSMOLD has the engineering expertise, precision manufacturing, and process knowledge to eliminate these common cap defects.

Whether you need a new mold designed for zero defects, or you need help troubleshooting an existing problematic mold, ZSMOLD can help.

Contact ZSMOLD today for a defect analysis of your current cap production. We will identify the root causes and provide specific solutions — new mold design, mold modification, or process recommendations.
