One Injection Machine, Double the Output? The Secret of ZSMOLD Short Cycle Preform Mold
What if you could double the output of your existing injection molding machine without buying a second press? For many preform manufacturers, the bottleneck is not the machine — it is the mold. A standard preform mold may run a 12-second cycle. A ZSMOLD short cycle preform mold can cut that time to 6–7 seconds. That is nearly double the output from the same machine. This article reveals the engineering secrets behind ZSMOLD short cycle technology and how it transforms your production economics.
The Math: Why Cycle Time Matters More Than You Think
Consider a single injection molding machine running 24 hours a day, 300 days per year:
| Cycle Time | Shots Per Day | Annual Shots (300 days) | Output Difference |
|---|---|---|---|
| 12 seconds | 7,200 | 2,160,000 | Baseline |
| 9 seconds | 9,600 | 2,880,000 | +33% |
| 7 seconds | 12,340 | 3,702,000 | +71% |
| 6 seconds | 14,400 | 4,320,000 | +100% |
A ZSMOLD short cycle preform mold can take you from 12 seconds down to 6–7 seconds. That is not just incremental improvement — it is a doubling of your machine's productive capacity.
The Secret: Three Core Technologies Behind ZSMOLD Short Cycle Molds
1. High-Efficiency Conformal Cooling
Cooling typically accounts for 60–70% of the total preform molding cycle. Most standard molds use straight-line cooling channels that leave hot spots and slow heat removal.
ZSMOLD solution: Conformal cooling channels follow the contour of the preform shape. Using advanced 3D machining, we place cooling lines exactly where heat needs to be extracted. The result:
Uniform temperature distribution across the entire preform
Cool-down time reduced by 30–40%
No hot spots that force extended cooling time
2. Optimized Gate and Runner Design
The hot runner system directly affects fill time and packing phase. A poorly designed gate increases injection time and delays cooling start.
ZSMOLD solution: We use rheologically optimized gate geometry that:
Reduces injection pressure by 15–20%
Achieves fast cavity filling without shear degradation
Enables earlier transition to packing and cooling phases
3. High-Performance Mold Steel with Rapid Heat Transfer
Not all mold steel is the same. Thermal conductivity and heat treatment significantly affect how fast the mold pulls heat away from the preform.
ZSMOLD solution: We select and specify steel grades with:
High thermal conductivity (40–60 W/mK for cooling areas)
Surface treatments that prevent sticking without slowing heat transfer
Optimized hardness to maintain precision under rapid thermal cycling
Beyond Cooling: What Else Shortens the Cycle?
Ejection System Speed
ZSMOLD molds feature low-friction ejection systems that operate reliably at faster mold opening/closing speeds. Hardened guide pins, precision bushings, and balanced ejector plates ensure smooth operation even at sub-7-second cycles.
Venting Efficiency
Fast cycles require rapid air evacuation from cavities. ZSMOLD molds incorporate precision-ground venting depths that prevent flash while allowing air to escape instantly — avoiding the burn marks or short shots that slow down production.
Mold Deflection Control
At faster cycle speeds, mold components experience more frequent thermal and mechanical stress. ZSMOLD molds use pre-stressed guide systems and robust mold bases that maintain alignment even under high-speed cycling.
Real-World Results: From 11 Seconds to 6.5 Seconds

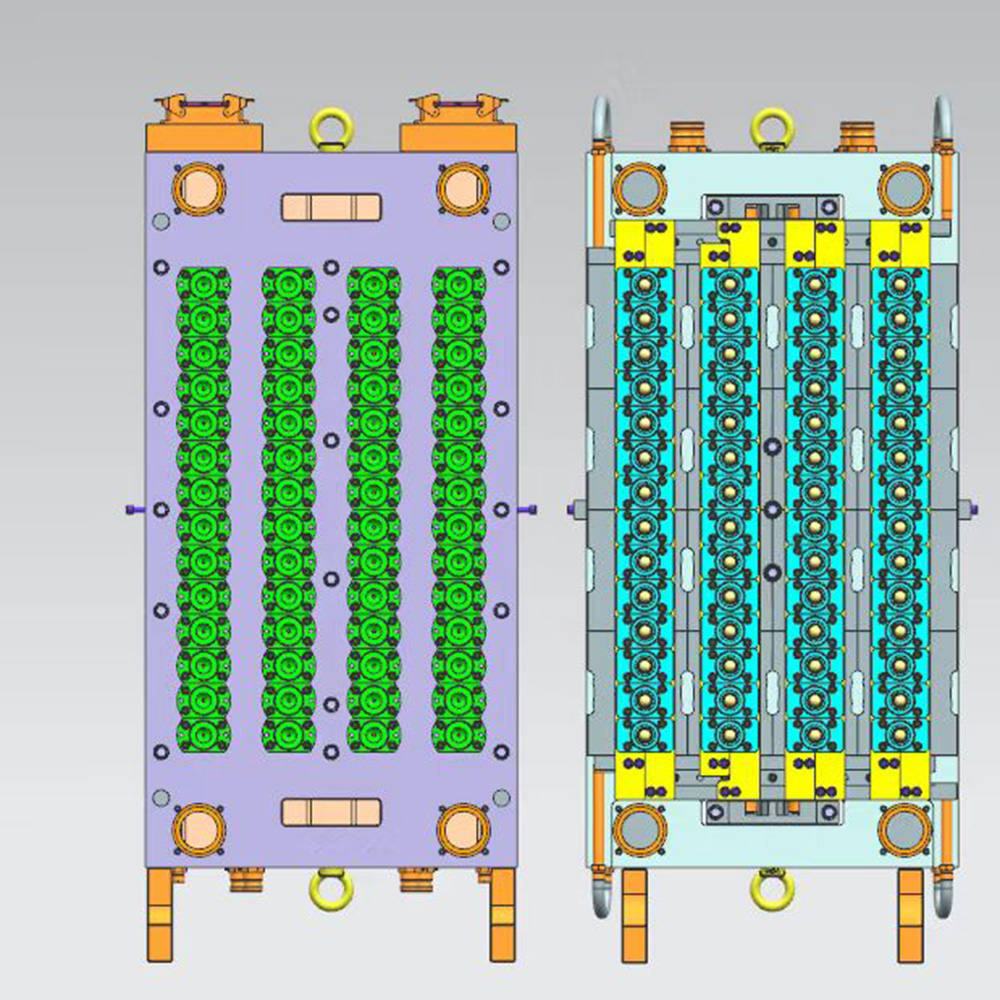

A customer producing 20g beverage preforms on a 300-ton injection machine was running an 11-second cycle with their previous mold. After switching to a ZSMOLD short cycle 72-cavity mold:
| Metric | Before | After | Improvement |
|---|---|---|---|
| Cycle time | 11.0 seconds | 6.5 seconds | -41% |
| Shots per hour | 327 | 554 | +69% |
| Preforms per day | 565,000 | 957,000 | +392,000 pcs |
| Machine output (annual) | 169.5 million | 287.1 million | +117.6 million |
The customer effectively gained a second injection machine worth of output without buying additional equipment. Payback period for the ZSMOLD molds: less than 4 months.
Is Double Output Always Possible?
Double output (100% increase) requires the right combination of:
Injection machine capability: Sufficient plasticizing capacity and clamping force for faster cycles
Robotic take-out speed: Fast enough to clear parts without extending cycle
Auxiliary equipment: Chillers and dryers sized for higher throughput
In many cases, ZSMOLD short cycle molds achieve 70–90% output increase. For machines with spare capacity, double output is absolutely achievable. ZSMOLD engineers will analyze your specific machine setup and provide a realistic cycle time projection before you buy.
Why Standard Molds Cannot Match ZSMOLD Cycle Times
Many mold makers claim "fast cycle" designs. However, most lack:
True conformal cooling capability (expensive 3D machining required)
Plastic flow simulation expertise to optimize gate design
High-performance steel sourcing with verified thermal properties
Precision manufacturing that maintains tolerances at high cycle speeds
ZSMOLD builds every short cycle mold with these technologies as standard, not as upgrades.
Conclusion
Can one injection machine deliver double the output? With ZSMOLD short cycle preform molds, the answer is yes — or very close to it. By slashing cooling time, optimizing melt flow, and designing for high-speed operation, ZSMOLD helps you produce more preforms from the same machine, same floor space, and same labor.
Stop buying more machines. Start maximizing the ones you already have with ZSMOLD short cycle technology.
Contact ZSMOLD today for a cycle time analysis and see how many more preforms your machine could be making.
