The Key to Multi-Cavity Preform Mold: ZSMOLD Runner Balance Technology
In multi-cavity preform molding, the biggest challenge is consistency. When you run 48, 72, or even 144 cavities simultaneously, every cavity must fill exactly the same way. Any imbalance in melt flow leads to weight variation, dimensional differences, and quality rejects. At ZSMOLD, our runner balance technology ensures that every cavity produces identical preforms — cycle after cycle. This article explains why runner balance is the key to multi-cavity preform mold success and how ZSMOLD achieves it.

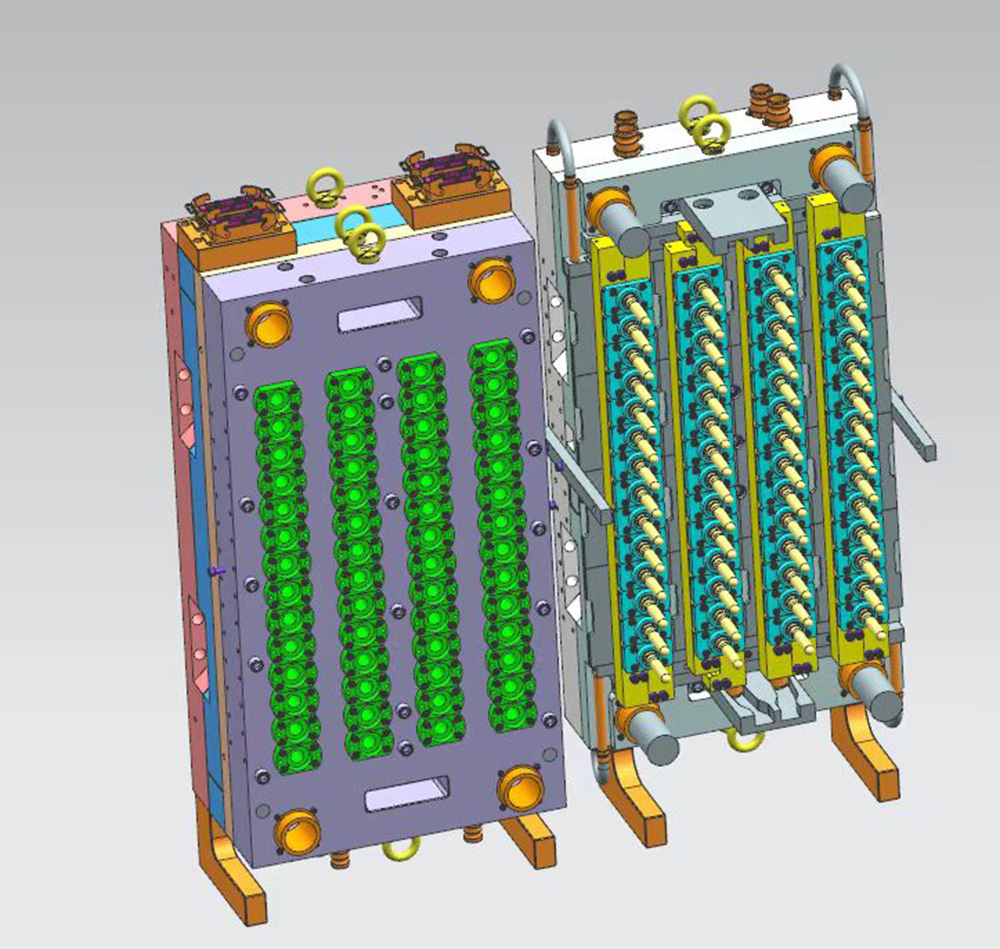

Why Runner Balance Matters in Multi-Cavity Molding
A multi-cavity preform mold is essentially multiple molds working in parallel. If the molten PET does not reach each cavity at the same pressure, temperature, and fill rate, the results are predictable:
Weight deviation: Some cavities produce heavier preforms, others lighter
Dimensional inconsistency: Shrinkage varies across cavities
Increased rejection rate: Out-of-spec preforms must be scrapped
Higher material cost: Overpacking some cavities wastes PET resin
Runner balance is not a luxury — it is the foundation of profitable multi-cavity production.
The Physics of Imbalance
Melt flow naturally prefers the path of least resistance. In an unbalanced runner system:
Cavities closer to the sprue fill faster and pack more
Cavities farther away fill slower and may short-shot
Shear heating creates temperature differences across the melt front
Without proper compensation, a 72-cavity mold can produce 72 different preform weights. ZSMOLD runner balance technology solves this through three key approaches.
ZSMOLD Runner Balance Technology: Three Core Principles
1. Geometrically Balanced Runner Layout
ZSMOLD designs runner systems using true geometric balance. Each flow path from the sprue to any cavity has identical length, cross-section, and number of turns. This ensures equal pressure drop and fill time for every cavity.
Our approach:
H-type and radial runner configurations optimized for cavity count
Computational fluid dynamics (CFD) to verify flow distribution
Symmetrical layouts even for odd cavity numbers
2. Flow-Controlled Hot Runner Nozzles
For multi-cavity hot runner molds, ZSMOLD integrates individual flow control at each nozzle tip. This active balance technology compensates for small manufacturing variations or melt property changes.
Key features:
Precision needle valves or thermal gate control
Individual nozzle temperature regulation
Real-time pressure balancing on select high-cavity molds
3. Shear Heating Compensation
As PET flows through runners, friction generates heat. In long flow paths, this shear heating can raise melt temperature by 5–10°C, affecting viscosity and fill behavior. ZSMOLD runner balance technology includes:
Flow path length equalization to minimize shear variation
Strategic gate sizing to balance shear effects
Thermal simulation to predict and offset temperature gradients
The Results: What Runner Balance Delivers
When ZSMOLD applies its runner balance technology to a multi-cavity preform mold, customers typically achieve:
| Parameter | Unbalanced Mold | ZSMOLD Balanced Mold |
|---|---|---|
| Cavity-to-cavity weight variation | ±0.25g – 0.35g | ±0.05g – 0.10g |
| Preform rejection rate | 1.5% – 3.0% | 0.2% – 0.5% |
| Material waste per million shots | 150–300 kg | 20–50 kg |
| Cavity filling time difference | Up to 15% | <2% |
These improvements directly reduce your cost per preform while increasing output consistency.
Case Example: 96-Cavity Water Bottle Preform Mold
A customer producing 500ml water bottle preforms upgraded to a ZSMOLD 96-cavity mold with our runner balance technology. Before, their existing mold showed 0.32g weight variation between best and worst cavities. After switching to ZSMOLD:
Weight variation reduced to 0.09g
Overall material usage dropped 2.8%
Annual PET savings: over 24 metric tons
Payback period for the mold: less than 6 months
The key to this result was not just precision machining — it was runner balance technology.
Why Runner Balance Is Even More Critical at High Cavity Counts
As cavity numbers increase, runner balance becomes exponentially harder. A 144-cavity mold has 144 parallel flow paths. Any small imbalance multiplies across the system. ZSMOLD addresses this with:
Multi-stage flow distribution: Primary, secondary, and tertiary runners with independent balancing
Stack mold capability: Balanced runners for two-layer mold designs
Simulation-driven design: Every cavity count from 24 to 144 is individually optimized
Conclusion
For multi-cavity preform molds, runner balance is not a feature — it is the core technology that determines success. Without it, you pay for inconsistent preforms, wasted material, and lost production time. With ZSMOLD runner balance technology, every cavity delivers identical preform weight, dimensions, and quality.
Whether you need 32 cavities or 144 cavities, ZSMOLD designs and builds multi-cavity preform molds with runner systems that are truly balanced — not just on paper, but in production.
Contact ZSMOLD today to discuss your multi-cavity preform mold requirements and experience the difference of runner balance technology.
