From Preform to Bottle: zsmold Reveals the Five Core Technologies of Preform Mold Design
In the PET packaging industry, the journey from raw PET resin to a finished bottle begins with a single critical component: the preform. This small but essential part determines the quality, strength, and appearance of the final bottle. And at the heart of every high-quality preform lies a precision-engineered preform mold.
At zsmold, we have dedicated ourselves to mastering the art and science of preform mold design. Through years of research, development, and real-world production experience, we have identified five core technologies that define exceptional preform molds: balanced hot runner systems, precision cooling, optimized gate design, robust construction, and reliable ejection.
This article takes you inside these five technologies and explains how zsmold applies them to deliver preform molds that consistently produce high-quality preforms, shot after shot, million after million.
Technology 1: Balanced Hot Runner Systems
The first and most critical technology in any preform mold is the hot runner system. This system delivers molten PET resin from the injection unit to each cavity. In multi-cavity molds, especially those with 48, 72, or even 96 cavities, flow balance is absolutely essential.
Why Balance Matters
Without perfect flow balance, some cavities may fill faster or slower than others, leading to inconsistent preform weights across cavities, variations in wall thickness that affect blow molding performance, residual stress that can cause preform deformation or bottle failure, and increased rejection rates with material waste.
How zsmold Achieves Balance
zsmold hot runner systems are engineered with geometrically balanced flow channels that ensure equal melt travel distance to every cavity. Individual nozzle temperature control provides precise thermal management. Advanced flow simulation using CAE technology predicts and eliminates imbalances before manufacturing. Optimized melt distribution maintains consistent viscosity and pressure across all cavities.
The result is uniform preform quality from every cavity, ensuring consistent blow molding performance and minimal material waste.
Technology 2: Precision Cooling Systems
Cooling accounts for approximately 70 to 80 percent of the total injection molding cycle time. In preform mold design, cooling is not just about speed. It is about uniformity.
Why Cooling Uniformity Matters
Uneven cooling leads to extended cycle times that reduce production output, preform warpage and dimensional instability, crystallization in the gate area often called gate blush or white haze, and residual stress that can cause bottle failure during blow molding.
How zsmold Masters Cooling
zsmold incorporates advanced cooling technologies to achieve optimal thermal management.
Conformal Cooling Channels: Unlike traditional straight-drilled cooling lines, zsmold molds feature cooling channels that follow the exact contour of the preform cavity. This allows heat to be extracted uniformly from the preform's body, neck, and gate area.
CFD-Optimized Design: zsmold uses computational fluid dynamics to model coolant flow, pressure drop, and heat transfer. This ensures that every cavity receives adequate cooling without hot spots or dead zones.
Strategic Cooling Zone Separation: The neck, body, and gate areas have different cooling requirements. zsmold molds feature separate cooling circuits that allow independent optimization for each zone.
High-Efficiency Cooling Media: Cooling channels are designed for optimal coolant flow rates, maximizing heat transfer efficiency.
The benefits are clear: faster cycles, lower energy consumption, and preforms with uniform crystallinity that blow into perfect bottles.
Technology 3: Optimized Gate Design
The gate is the point where molten PET enters the preform cavity. In preform molding, the gate is typically located at the center of the preform base, the injection point. Gate design directly impacts preform appearance by affecting gate blush or haze, structural integrity including strength at the base, and blow molding performance through material distribution during stretching.
How zsmold Optimizes Gate Design
zsmold engineers gate systems with precision and care.
Valve Gate Technology: zsmold molds utilize valve gate hot runner systems that provide clean, controlled shut-off at the gate. This eliminates gate stringing and ensures a smooth, consistent gate mark.
Optimized Gate Diameter: The gate diameter is carefully calculated to balance fill speed, which minimizes shear heating, with pressure requirements to ensure complete filling.
Gate Cooling: Special attention is given to cooling around the gate area to prevent premature solidification that can cause gate blush or incomplete filling.
Shear Control: Gate geometry is designed to minimize shear stress on the PET material, preserving molecular weight and preventing degradation.
Proper gate design ensures that each preform has a clean, strong base that stretches uniformly during blow molding to form the bottle's bottom.
Technology 4: Robust Construction and Precision Manufacturing
Preform molds operate under extreme conditions: high injection pressures, rapid cycling, and continuous production that can run 24 hours a day, 7 days a week, for years. To withstand these demands, molds must be built with uncompromising durability.
How zsmold Ensures Robust Construction
zsmold molds are manufactured with premium tool steel featuring excellent wear resistance, corrosion resistance, and thermal conductivity. Materials such as H13, S136, and 420 stainless steel are selected based on application requirements.
All critical components undergo precise heat treatment to achieve optimal hardness and toughness, ensuring long service life.
Manufacturing facilities are equipped with high-speed CNC machining centers and EDM equipment capable of achieving micron-level tolerances.

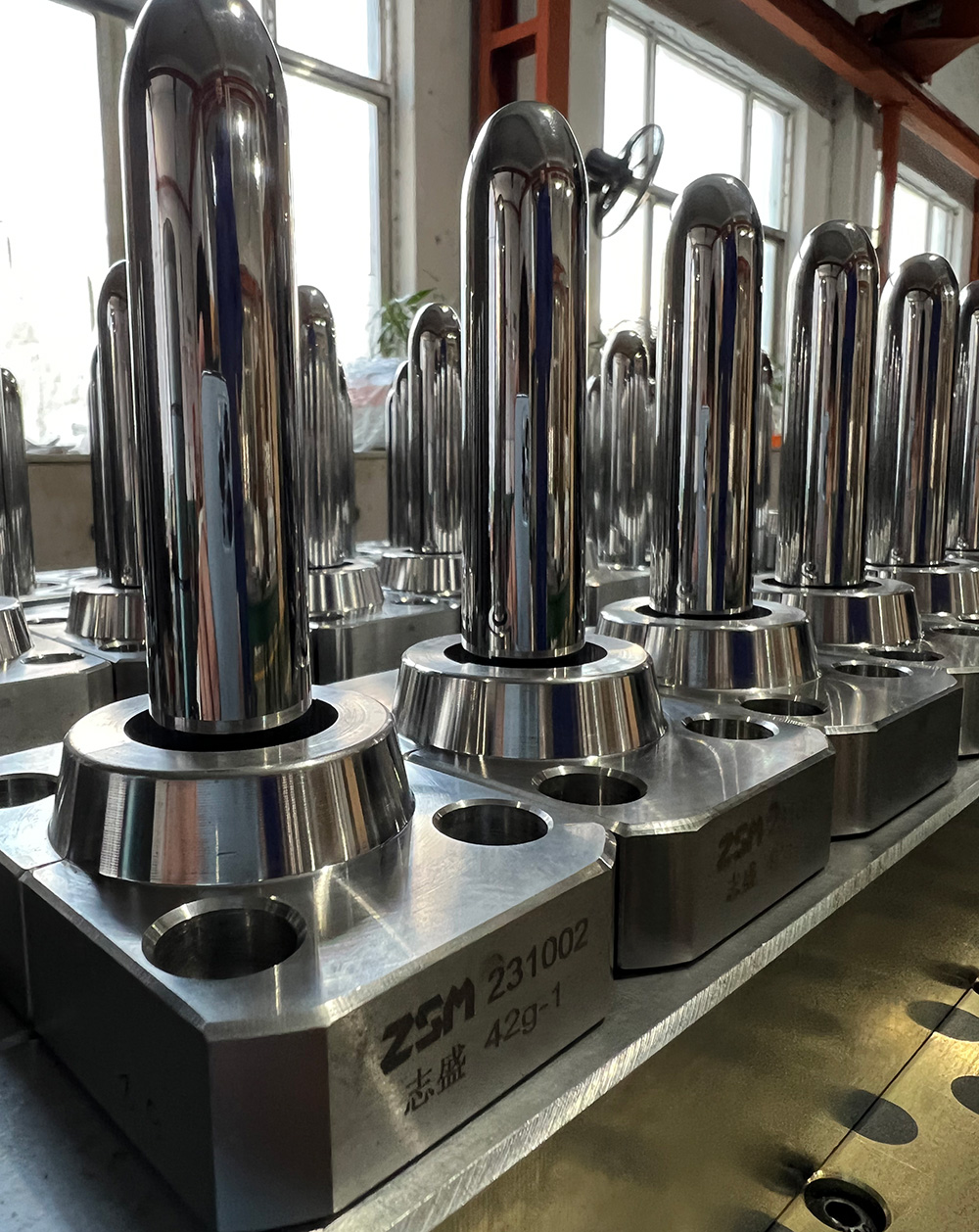

Cavities, cores, and wear parts are designed for easy replacement, minimizing downtime during maintenance.
Optional coatings such as titanium nitride or diamond-like carbon can be applied to critical surfaces for extended wear resistance.
The result is a mold that delivers consistent performance over millions of cycles with predictable maintenance intervals.
Technology 5: Reliable Ejection Systems
The final technology is often overlooked but critically important: ejection. Even the most perfectly formed preform is worthless if it cannot be ejected cleanly and reliably from the mold.
Why Ejection Matters
Ejection failures lead to downtime from stuck preforms, damaged molds from improper ejection, and scratched or deformed preforms that must be rejected.
How zsmold Ensures Reliable Ejection
zsmold engineers ejection systems with precision and reliability in mind.
Optimized Ejector Sleeve Design: For preform molds, ejector sleeves are typically used to push preforms off the core. zsmold designs these sleeves with precise fit and smooth surface finishes to ensure consistent, friction-free movement.
Air-Assisted Ejection: For particularly sticky or sensitive applications, zsmold offers air-assisted ejection that uses compressed air to break the vacuum and release preforms cleanly.
Hardened Ejector Components: All ejection components are manufactured from wear-resistant steel and heat-treated to withstand millions of cycles.
Sensors and Monitoring: Optional sensors can detect ejection issues before they cause damage, allowing operators to take corrective action immediately.
Reliable ejection ensures smooth, uninterrupted production and protects both the mold and the preforms from damage.
Integrating the Five Technologies: The zsmold Advantage
These five core technologies do not exist in isolation. At zsmold, they are integrated into a comprehensive design and manufacturing process that ensures every mold delivers the highest level of performance.
The development process begins with requirements analysis to understand customer specifications including preform weight, neck finish, cavity count, and cycle time targets. Next comes design and simulation, creating 3D models and performing flow analysis, cooling simulation, and structural analysis. Manufacturing follows with precision machining, heat treatment, surface finishing, and quality inspection. Assembly and testing includes mold assembly, trial runs, and verification of preform quality and cycle time. Validation involves producing sample preforms for dimensional inspection and blow testing. Finally, delivery and support includes shipping the mold with documentation and providing ongoing technical support.
Real-World Results: What zsmold Customers Experience
Manufacturers who choose zsmold preform molds consistently report cycle time reductions of 15 to 25 percent compared to conventional molds, preform weight consistency within plus or minus 0.1 grams across all cavities, tool life exceeding 5 to 10 million cycles with proper maintenance, first-pass yield consistently above 99 percent, and superior blow molding performance with minimal bottle defects.
Conclusion: From Preform to Bottle, Excellence by Design
The journey from preform to bottle is a complex process that demands precision at every step. At zsmold, exceptional preform molds are the result of mastering five core technologies: balanced hot runner systems, precision cooling, optimized gate design, robust construction, and reliable ejection.
Whether you are producing preforms for carbonated soft drinks, bottled water, edible oils, or hot-fill applications, zsmold has the expertise and technology to deliver molds that perform.
Choose zsmold. Choose precision. Choose quality from preform to bottle.
