PET Preform Molds: High-Efficiency Multi-Cavity Solutions for Mineral Water and Purified Water Bottles
ZSM Machinery: Professional Manufacturer of Bottle Caps, PET Preforms, and Blow Molding Machines
ZSM Machinery is a leading manufacturer and supplier of high-performance plastic packaging solutions for the global industry. Specializing in bottle cap production equipment, PET preform injection molding systems, and advanced blow molding machinery, we provide comprehensive, integrated solutions for manufacturers worldwide. With years of technical expertise and a strong commitment to research and development, we offer state-of-the-art equipment and tooling that enables customers to produce high-quality plastic packaging components efficiently and cost-effectively.
PET Preform Molds: High-Efficiency Multi-Cavity Solutions for Mineral Water and Purified Water Bottles

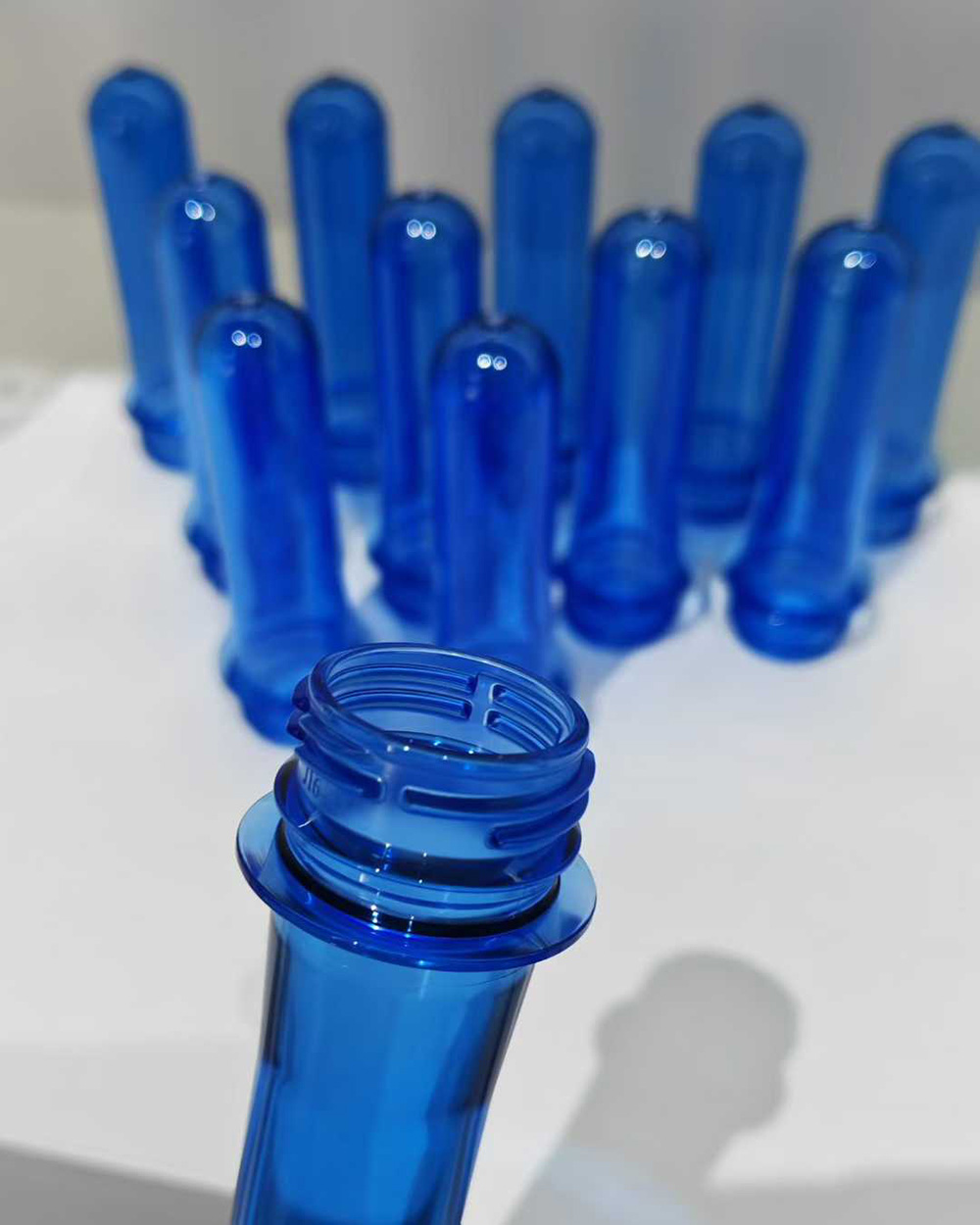

ZSM Machinery proudly presents our PET Preform Molds—precision-engineered tooling solutions specifically designed for the high-volume production of preforms for mineral water and purified water bottles. The bottled water industry demands exceptional productivity, consistent quality, and cost efficiency, requiring molds that can deliver high output while maintaining dimensional accuracy and material integrity . Our multi-cavity preform molds meet these demands with advanced engineering, superior materials, and optimized cooling systems.
Key Features
1. High-Efficiency Multi-Cavity Configurations
Our preform molds are engineered for maximum productivity in water bottle applications:
| Cavity Count | Ideal Application | Typical Output |
|---|---|---|
| 48 cavities | High-volume water bottle production | 17,000-25,000/hour |
| 72 cavities | Large-scale water bottling operations | 23,000-31,000/hour |
| 96 cavities | Ultra-high volume production | 30,000-40,000/hour |
These high-cavitation configurations significantly reduce per-part costs, making them ideal for the competitive bottled water market.
2. Optimized for Mineral and Purified Water Applications
Our molds are specifically engineered for water bottle preform requirements:
PCO 1810 and PCO 1881 neck finishes – Industry-standard closures for still and sparkling water bottles
Lightweight preform designs – Material-saving configurations reducing resin consumption while maintaining bottle integrity
Consistent wall thickness distribution – Ensuring reliable blow molding performance
Superior clarity – Mirror-polished cavity surfaces for exceptional preform transparency
3. Advanced Valve Gate Hot Runner System
Our preform molds feature state-of-the-art hot runner technology:
Individual temperature control for each nozzle, maintaining accuracy within ±1°C
Pneumatic valve gate system providing clean gate vestige with no tail trimming required
Balanced filling across all cavities ensuring consistent preform weight and dimensions
Weight variation between cavities: Maintained below 0.3 grams
Low acetaldehyde (AA) generation – Critical for preserving water taste and quality
4. Premium Material Construction
ZSM molds are constructed from the highest quality materials for extended mold life:
| Component | Material | Hardness |
|---|---|---|
| Core and Cavity Inserts | S136 Stainless Steel (Sweden) | HRC 48-52 |
| Neck Rings | Imported Nitrided Steel | HRC 45+ |
| Mold Base | Chrome-plated P20 Steel | Pre-hardened |
| Hot Runner Components | H13 Tool Steel | Heat-treated |
Mold life: Engineered for 3-5+ million injection cycles with proper maintenance
5. Optimized Cooling System for Water Bottle Preforms
Efficient cooling is essential for achieving fast cycle times and consistent quality:
Spiral cooling channels in cavity inserts for rapid, uniform heat extraction
Enhanced cooling in neck area where material thickness is greatest
Individual cooling circuit control for balanced temperature distribution
Cycle times as low as 15-19 seconds for standard water bottle preforms
6. Precision Engineering for Consistent Quality
Wall thickness concentricity: Maintained within ±0.075mm (for standard water bottle preforms)
Weight consistency: Less than 0.3g variation across all cavities
Self-locking cavity design: Each cavity self-clamps independently for high precision and fewer defects
Advanced dipole taper localization technique: Ensures perfect alignment and concentricity
Technical Specifications
| Parameter | Specification |
|---|---|
| Cavity Options | 48, 72, 96 cavities |
| Neck Finish | PCO 1810, PCO 1881 (industry standard for water bottles) |
| Preform Weight Range | 9g - 30g typical for water bottles |
| Cycle Time | 15-19 seconds (depending on preform weight) |
| Weight Difference Between Cavities | < 0.3 grams |
| Wall Thickness Concentricity | ±0.075mm |
| Gate Type | Valve gate hot runner (needle valve) |
| Mold Life | 3-5+ million shots |
| Material Compatibility | Virgin PET, rPET (up to 100%) |
| Certification | FDA food contact standards, CE |
Applications
Mineral Water Bottles
Natural spring water containers
Mineral-enriched water packaging
Premium water bottles
Purified Water Bottles
Reverse osmosis purified water
Distilled water containers
Filtered drinking water bottles
Carbonated Water
Sparkling water and seltzer bottles
Club soda packaging
Quality Assurance
Every ZSM preform mold undergoes rigorous quality testing before shipment:
Factory Acceptance Testing (FAT) running actual production materials under controlled conditions
CMM inspection verifying all critical dimensions to micron accuracy
Preform measurement and analysis verifying weight consistency and wall thickness distribution
Sample production available for customer approval
Detailed documentation including maintenance guides and spare parts lists
One-year warranty with lifetime technical support
Why Choose ZSM for Water Bottle Preform Molds?
Specialized expertise: Deep understanding of bottled water industry requirements and high-cavitation preform production
Maximum productivity: 48 to 96 cavity configurations delivering exceptional output
Premium materials: S136 steel, chrome-plated P20, and imported components for extended mold life
Precision engineering: Weight variation below 0.3g and wall thickness concentricity within ±0.075mm
Low AA generation: Critical for maintaining water taste and quality
Advanced cooling technology: Fast cycle times optimizing production efficiency
Comprehensive support: Design consultation, installation guidance, and after-sales service from experienced engineers
Integrated solutions: Seamless compatibility with our PET preform injection machines and blow molding equipment
Partner with ZSM for High-Efficiency Water Bottle Preform Production
ZSM Machinery's PET Preform Molds represent the ideal solution for mineral water and purified water manufacturers seeking maximum productivity, consistent quality, and long-term reliability. By combining high-cavitation design, premium materials, advanced hot runner technology, and precision engineering, we help our customers achieve superior competitiveness in the global bottled water market.
Contact ZSM Machinery today to discuss your water bottle preform mold requirements and discover how our high-efficiency solutions can transform your manufacturing operations.
