Ultra-High Efficiency 64-Cavity PET Preform Injection Mold: Maximum Productivity for Large-Scale Operations
ZSM Machinery: Professional Manufacturer of Bottle Caps, PET Preforms, and Blow Molding Machines
ZSM Machinery is a leading manufacturer and supplier of high-performance plastic packaging solutions for the global industry. Specializing in bottle cap production equipment, PET preform injection molding systems, and advanced blow molding machinery, we provide comprehensive, integrated solutions for manufacturers worldwide. With years of technical expertise and a strong commitment to research and development, we offer state-of-the-art equipment and tooling that enables customers to produce high-quality plastic packaging components efficiently and cost-effectively.
Ultra-High Efficiency 64-Cavity PET Preform Injection Mold: Maximum Productivity for Large-Scale Operations

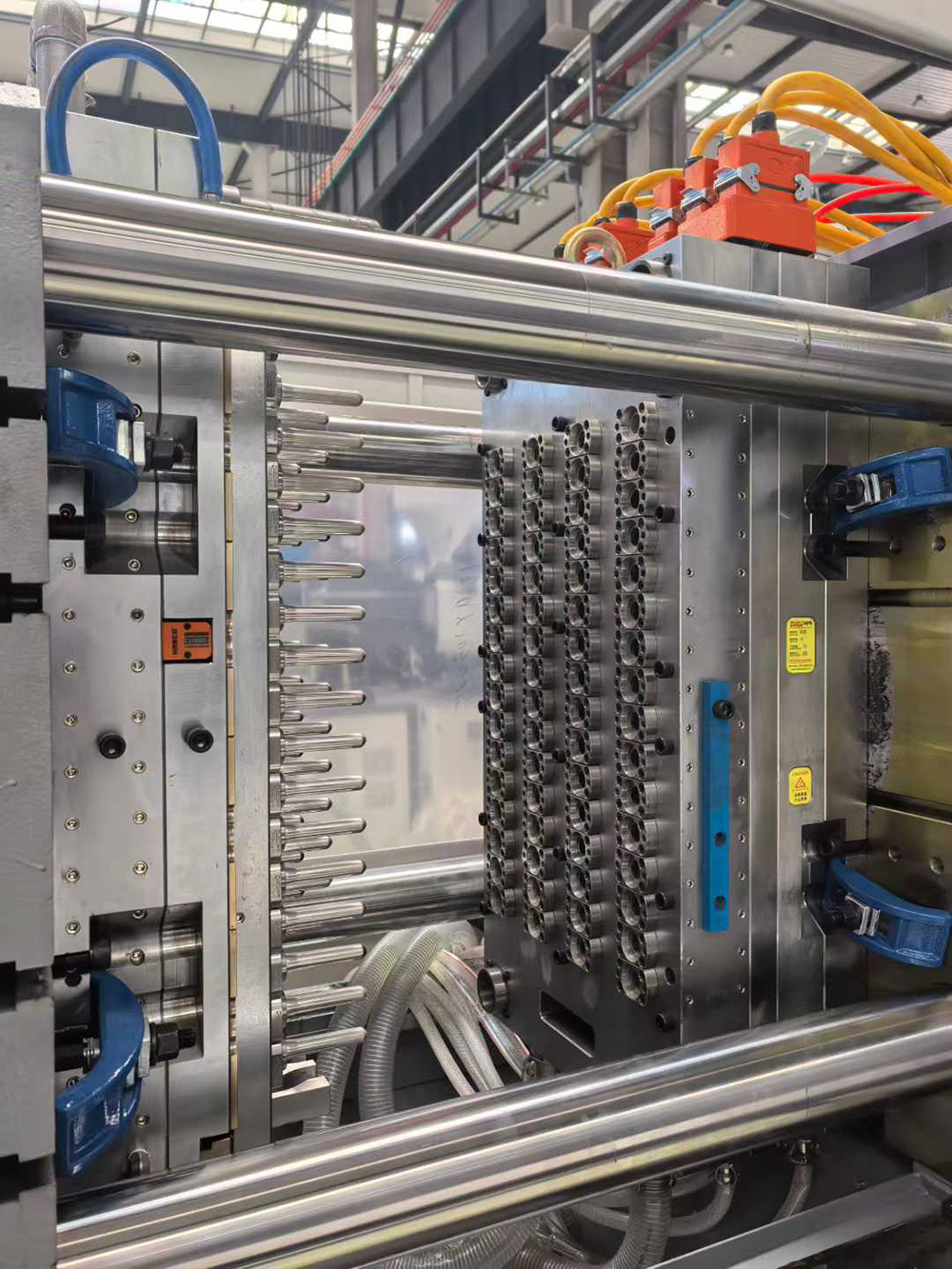

ZSM Machinery proudly presents our Ultra-High Efficiency 64-Cavity PET Preform Injection Mold—a precision-engineered tooling solution designed specifically for manufacturers requiring maximum productivity in high-volume preform production. The 64-cavity configuration represents the pinnacle of preform molding efficiency, enabling simultaneous production of 64 high-quality preforms per cycle for large-scale beverage, food, and packaging operations . Our advanced mold delivers exceptional output rates, consistent quality, and long-term reliability for demanding production environments.
Unmatched Production Efficiency
Our 64-cavity preform mold is engineered for maximum throughput:
Simultaneous production of 64 preforms per cycle dramatically increases hourly output
Production capacity of 23,000-35,000+ preforms per hour depending on preform weight and cycle time
High cavitation efficiency significantly reduces per-part costs for large-volume manufacturers
Ideal for major beverage companies, large-scale preform converters, and integrated packaging operations
Precision Engineering for Consistent Quality
1. Advanced Valve Gate Hot Runner System
The heart of our 64-cavity mold is a state-of-the-art hot runner system featuring:
Individual temperature control for each nozzle, maintaining accuracy within ±1°C
Pneumatic valve gate technology providing clean gate vestige with no tail trimming required
Balanced filling across all 64 cavities ensuring consistent preform weight and dimensions
Weight variation between cavities maintained below 0.3 grams
Optimized material flow preventing defects and minimizing acetaldehyde (AA) generation
2. Superior Concentricity and Wall Thickness Control
ZSM's 64-cavity molds achieve exceptional dimensional precision:
Wall thickness concentricity: Maintained within ±0.075mm (for L=100mm preforms)
Optimized preform design ensures successful downstream blow molding performance
Advanced dipole taper localization technique ensures each cavity self-clamps independently for perfect alignment
Consistent material distribution across all cavities for uniform bottle quality
3. Premium Material Construction
ZSM molds are constructed from the highest quality materials for extended mold life:
Mold life: Engineered for 3-5+ million injection cycles with proper maintenance
4. Optimized Cooling System for 64-Cavity Operation
Efficient cooling is critical for high-cavitation molds to ensure uniform temperature distribution:
Spiral cooling channels in cavity inserts for rapid, uniform heat extraction across all 64 cavities
Enhanced cooling in neck area where material thickness is greatest
Individual cooling circuit control for balanced temperature distribution
Oil cooling capability available for precise temperature management
Cycle times of 15-23 seconds for standard preform specifications (molding cycle up to 42.5s depending on preform weight)
5. Self-Locking Cavity Design
Each cavity in a ZSM 64-cavity mold features independent self-locking capability:
Individual cavity self-clamping ensures high precision and fewer defects
Reduced defect rates through independent cavity management
Simplified maintenance allowing individual cavity service without affecting others
6. Comprehensive Mold Flow Analysis
Every ZSM 64-cavity mold undergoes detailed mold flow analysis before manufacturing:
Simulation of melt flow patterns and filling behavior
Cooling system efficiency verification
Warpage and shrinkage predictions optimization
Technical Specifications
Applications Across Industries
Beverage Industry
Bottled water (still and sparkling) for high-volume production
Juices, sports drinks, and tea beverages
Food Packaging
Edible oils and sauces for large-scale food manufacturers
Condiments and food-grade containers
Pharmaceutical and Healthcare
Medical bottles for high-volume pharmaceutical applications
Liquid medication containers requiring precision neck finishes
Personal Care and Cosmetics
Shampoo, lotion, and cosmetic bottles for mass-market products
Personal care packaging for major brands
Household Products
Detergent and cleaning solution containers for household chemical industry
Quality Assurance
Every ZSM 64-cavity preform mold undergoes rigorous quality testing before shipment:
Factory Acceptance Testing (FAT) running actual production materials under controlled conditions
CMM inspection verifying all critical dimensions to micron tolerances
Preform measurement and analysis verifying weight consistency and wall thickness distribution
Sample production available for customer approval
Detailed documentation including maintenance guides and spare parts lists
One-year warranty with lifetime technical support
Why Choose ZSM for 64-Cavity Preform Molds?
Specialized expertise: Focused exclusively on PET preform mold manufacturing with deep knowledge of high-cavitation systems
Maximum productivity: 64-cavity design delivering exceptional output for large-scale operations
Premium materials: S136 steel, chrome-plated P20, and imported components for extended mold life
Precision engineering: Wall thickness concentricity within ±0.075mm ensuring consistent preform quality
Advanced hot runner technology: Valve gate system with individual temperature control for balanced filling
Optimized cooling: Advanced cooling system design ensuring uniform temperature across all 64 cavities
Comprehensive support: Design consultation, installation guidance, and after-sales service from experienced engineers
Proven track record: Molds operating successfully worldwide with lifespans of 8-10+ million cycles
Partner with ZSM for Ultra-High Efficiency Preform Production
ZSM Machinery's Ultra-High Efficiency 64-Cavity PET Preform Injection Mold represents the ideal solution for manufacturers seeking maximum productivity, consistent quality, and long-term reliability in high-volume preform production. By combining premium materials, advanced hot runner technology, optimized cooling systems, and precision engineering, we help our customers achieve superior competitiveness in large-scale packaging markets.
Contact ZSM Machinery today to discuss your 64-cavity preform mold requirements and discover how our ultra-high efficiency solutions can transform your manufacturing operations.
