Transparent Wide-Mouth Jar Molds: Precision Tooling for Clear Container Production
ZSM Machinery: Professional Manufacturer of Bottle Caps, PET Preforms, and Blow Molding Machines
ZSM Machinery is a leading manufacturer and supplier of high-performance plastic packaging solutions for the global industry. Specializing in bottle cap production equipment, PET preform injection molding systems, and advanced blow molding machinery, we provide comprehensive, integrated solutions for manufacturers worldwide. With years of technical expertise and a strong commitment to research and development, we offer state-of-the-art equipment and tooling that enables customers to produce high-quality plastic packaging components efficiently and cost-effectively.
Transparent Wide-Mouth Jar Molds: Precision Tooling for Clear Container Production

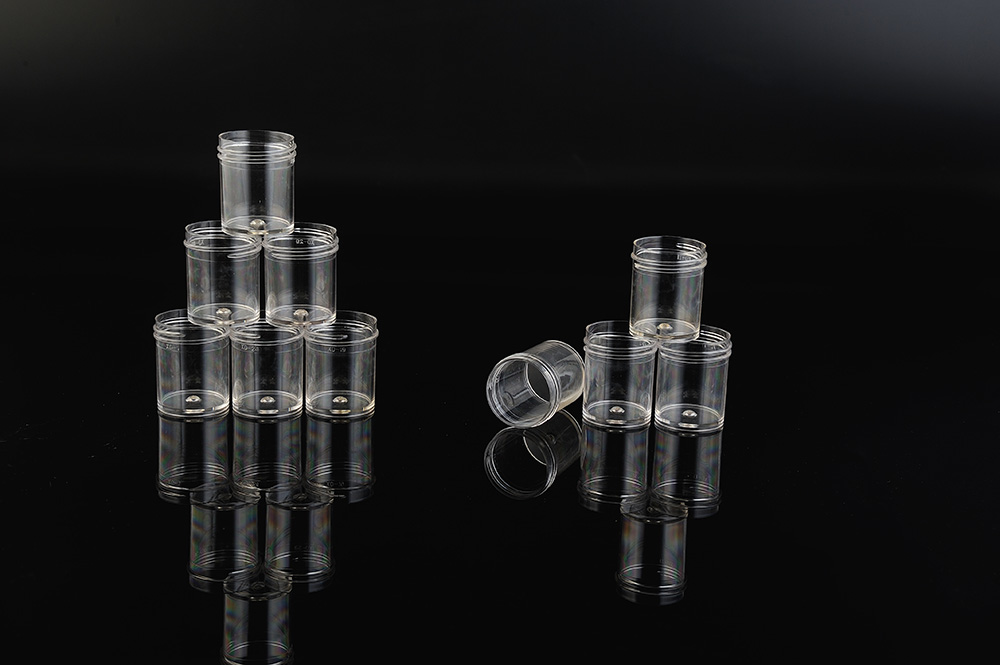

ZSM Machinery proudly presents our Transparent Wide-Mouth Jar Molds—precision-engineered tooling solutions designed specifically for the production of high-clarity wide-mouth containers. Wide-mouth jars are essential packaging for food products, cosmetics, pharmaceuticals, and household items, offering easy access and convenient filling . Our transparent jar molds deliver exceptional optical clarity, dimensional precision, and reliable performance for manufacturers serving these diverse markets.
Understanding Wide-Mouth Jar Applications
Wide-mouth jars feature larger neck openings than standard bottles, making them ideal for products requiring easy access, scooping, or filling . The transparent nature of these containers allows consumers to view the product inside, making clarity a critical quality attribute .
Key Applications:
Food Packaging: Jars for honey, jams, sauces, pickles, and dry foods
Cosmetics and Personal Care: Cream jars, lotion containers, and beauty product packaging
Pharmaceuticals: Medical jars, vitamin containers, and healthcare packaging
Household Products: Storage containers for various household items
Key Features of ZSM Wide-Mouth Jar Molds
1. Superior Optical Clarity
Our transparent jar molds are engineered to maximize clarity:
Mirror-polished cavity surfaces ensuring exceptional transparency in finished jars
Optimized cooling design preventing stress-induced haze or crystallization
Precision temperature control maintaining optimal material properties for clarity
Surface finish options from high-gloss to custom textures as required
2. Precision Wide-Mouth Neck Finishes
The neck finish is critical for jar functionality and sealing performance:
Neck sizes from 38mm to 120mm and beyond for various applications
Thread or snap-on configurations compatible with standard closures
Tamper-evident features integrated into neck design
Custom neck finishes for proprietary closure systems
3. Advanced Hot Runner Systems
Our wide-mouth jar molds feature state-of-the-art hot runner technology:
Individual temperature control for each nozzle, maintaining accuracy within ±1°C
Valve gate design providing clean gate vestige with no tail trimming required
Balanced filling across all cavities ensuring consistent jar weight and dimensions
Optimized for PET processing with low acetaldehyde (AA) generation
4. Premium Material Construction
| Component | Material | Hardness |
|---|---|---|
| Core and Cavity Inserts | S136 Stainless Steel | HRC 46-50 |
| Neck Rings | S136 / Nitrided Steel | HRC 43-52 |
| Mold Base | P20 / 4Cr13 | Pre-hardened |
| Hot Runner Components | H13 Tool Steel | Heat-treated |
5. Optimized Cooling System
Efficient cooling is essential for fast cycle times and consistent jar quality:
Spiral cooling channels for rapid, uniform heat extraction
Enhanced cooling in neck and base areas where material thickness is greatest
Individual cooling circuit control for balanced temperature distribution
Cycle times of 20-35 seconds depending on jar size and weight
6. Precision Engineering
Wall thickness variation: Maintained below 0.10mm between maximum and minimum sections
Weight variation: Less than 0.3g between cavities
Concentricity: Advanced alignment ensuring uniform material distribution
Cavity Configurations
| Cavity Count | Ideal Application |
|---|---|
| 1-8 cavities | Large jars, specialty production |
| 8-16 cavities | Medium-volume production |
| 16-32 cavities | High-volume production |
Quality Assurance
Every ZSM wide-mouth jar mold undergoes rigorous quality testing:
Precision machining with micron-level accuracy
Comprehensive testing before shipment validating mold performance
Sample production available for customer approval
Detailed documentation including maintenance guides and spare parts lists
Mold life: Engineered for 2-5 million injection cycles with proper maintenance
Why Choose ZSM for Wide-Mouth Jar Molds?
Comprehensive expertise: Specializing in caps, preforms, and blow molding for integrated solutions
Superior clarity: Mirror-polished cavities ensuring exceptional transparency
Precision engineering: High-quality components ensuring consistent jar quality
Advanced hot runner technology: Valve gate systems with individual temperature control
Premium materials: S136 steel, P20 mold base, and top-grade components
Customization capabilities: Tailored neck finishes, weights, and cavity configurations
Integration: Seamless compatibility with our preform and cap manufacturing equipment
Partner with ZSM for Transparent Wide-Mouth Jar Solutions
ZSM Machinery's Transparent Wide-Mouth Jar Molds represent the ideal solution for manufacturers seeking precision, clarity, and reliability in jar production. Contact us today to discuss your requirements.
