Custom Screw Cap Molds: Precision-Engineered for Reliable Threaded Closure Production
ZSM Machinery is a leading manufacturer and supplier of high-performance plastic packaging solutions for the global industry. Specializing in bottle cap production equipment, PET preform injection molding systems, and advanced blow molding machinery, we provide comprehensive, integrated solutions for manufacturers worldwide. With years of technical expertise and a strong commitment to research and development, we offer state-of-the-art equipment and tooling that enables customers to produce high-quality plastic packaging components efficiently and cost-effectively. Our comprehensive product range serves the beverage, food, pharmaceutical, and personal care sectors with machinery and molds designed for optimal performance, precision engineering, and long-term reliability.
Custom Screw Cap Molds: Precision-Engineered for Reliable Threaded Closure Production
ZSM Machinery proudly presents our comprehensive range of Custom Screw Cap Molds—precision-engineered tooling solutions designed specifically for the efficient production of threaded bottle caps. Screw caps are the most widely used closure type in the global packaging industry, serving as the standard solution for countless beverage, food, pharmaceutical, and household products . The quality of the screw thread is critical to ensuring proper sealing, tamper evidence, and user experience . Our custom screw cap molds deliver exceptional precision, consistent quality, and reliable performance for manufacturers serving these essential markets.
Understanding Screw Caps and Their Applications

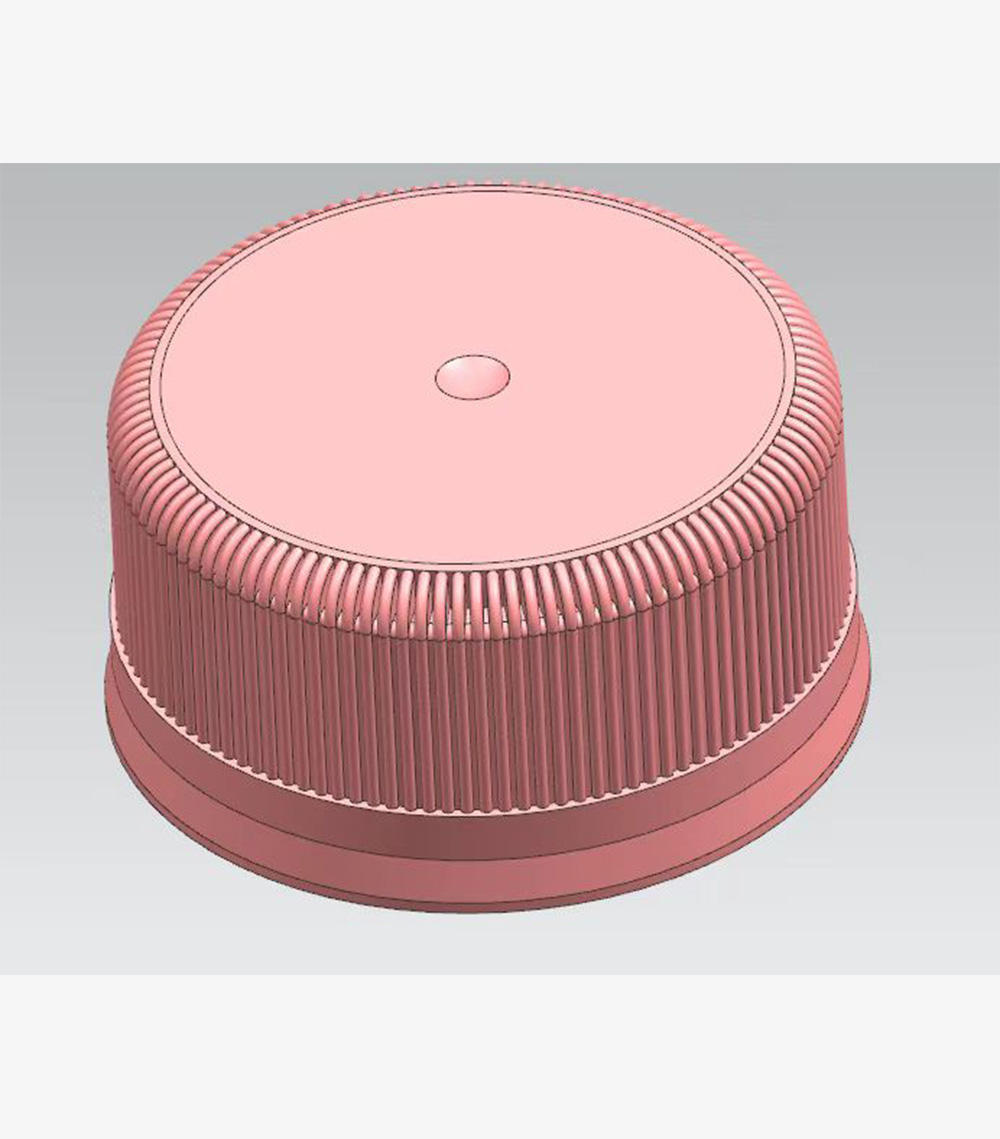

Screw caps feature internal threads that engage with corresponding threads on bottle or container necks, providing a secure, resealable closure. These caps must meet demanding requirements including leak-proof performance, consistent opening torque, and often tamper-evident features .
Key Applications Across Industries:
Beverage Industry: Carbonated soft drinks, bottled water, juices, and sports drinks requiring PCO and BPF neck finish compatibility
Food Packaging: Edible oils, sauces, condiments, and food products requiring reliable sealing
Pharmaceutical and Healthcare: Liquid medications, vitamins, and medical packaging with child-resistant options
Personal Care Products: Lotions, shampoos, and cosmetics requiring elegant closure designs
Household and Industrial Chemicals: Detergents, cleaning products, and chemical containers requiring durable, chemical-resistant closures
Key Features of ZSM Custom Screw Cap Molds
1. Precision Multi-Cavity Configurations
ZSM Machinery offers screw cap molds in various cavity configurations to match your specific production requirements :
| Cavity Count | Ideal Application | Typical Output |
|---|---|---|
| 16-24 cavities | Small to medium-scale production | 8,000-20,000/hour |
| 32-48 cavities | Medium to high-volume production | 20,000-50,000/hour |
| 48-72 cavities | High-volume production | 40,000-80,000/hour |
| 72-128 cavities | Ultra-high volume production | 80,000-200,000/hour |
The specific output depends on cap size, weight, design complexity, and material selection. Our engineering team helps you select the optimal cavity configuration for your production needs.
2. Advanced Thread Formation Technology
The screw thread is the most critical feature of any screw cap, determining sealing performance and consumer experience. ZSM molds incorporate specialized thread-forming technology:
Precision thread-forming inserts manufactured to micron-level tolerances
Consistent thread profiles across all cavities ensuring uniform sealing performance
Optimized cooling in thread area ensuring dimensional stability and preventing warpage
Compatibility with standard neck finishes including PCO 1810, PCO 1881, BPF, and custom profiles
3. Advanced Hot Runner Systems
The hot runner system is critical for screw cap quality, particularly for consistent thread formation and gate vestige control. ZSM molds feature advanced hot runner systems with :
Individual temperature control for each nozzle, maintaining accuracy within ±1°C
Valve gate technology providing clean gate vestige on non-visible areas
Balanced filling across all cavities ensuring consistent cap dimensions and sealing surface quality
Optimized material flow preventing defects in thin sections and critical sealing areas
4. Premium Material Selection for Extended Mold Life
ZSM molds are constructed from high-quality materials selected for durability and performance :
| Component | Material | Treatment | Hardness |
|---|---|---|---|
| Core and Cavity Inserts | S136 Stainless Steel | Vacuum quenching | HRC 43-52 |
| Neck Rings | S136 | Vacuum quenching | HRC 43-52 |
| Main Mold Base | P20 Steel | Nitriding treatment | HRC 28-32 |
| Heating Plates | H13 Steel | Standard | - |
With proper operation and maintenance, ZSM screw cap molds deliver over 2-5 million injection cycles with consistent performance .
5. Automatic Unscrewing Mechanisms
For screw caps requiring threaded ejection, ZSM offers advanced automatic unscrewing systems:
Hydraulic motor-driven unscrewing providing smooth, controlled rotation for reliable thread release
Rack and pinion mechanisms for synchronized operation across multiple cavities
Collapsing core options for internal threads and undercuts
Precision timing controls ensuring complete thread disengagement before ejection
6. Optimized Cooling System Design
Efficient cooling is essential for achieving fast cycle times and consistent screw cap quality:
Spiral cooling channels ensuring rapid, uniform heat extraction across all cavities
Enhanced cooling in critical areas such as thread-forming regions and sealing surfaces
Individual cooling circuit control for balanced temperature distribution
Cycle times as low as 2-4 seconds for standard screw cap designs
Customization Options
ZSM Machinery offers extensive customization options for screw cap molds:
Neck Finish Customization
PCO 1810, PCO 1881 for carbonated soft drinks and water bottles
BPF finishes for European and international applications
Custom thread profiles for proprietary closure systems
38mm, 48mm, and wide-mouth configurations
Tamper-Evident Features
Breakable band designs providing visible evidence of opening
Precision bridges ensuring consistent break strength
Compatibility with standard capping equipment
Sealing System Options
Linerless designs with integrated sealing features
Liner-compatible configurations for induction or compression seals
Multi-material capability for two-shot sealing systems
Branding and Aesthetics
Embossed or debossed logos on cap top or sides
Custom surface textures for enhanced grip and appearance
Color change capability for multi-color designs
Material Compatibility
Our custom screw cap molds are compatible with all materials commonly used in cap production:
| Material | Key Properties | Typical Applications |
|---|---|---|
| HDPE (High-Density Polyethylene) | Chemical resistance, durability | Most common for screw caps |
| PP (Polypropylene) | Flexibility, chemical resistance | Food, pharmaceutical applications |
| LDPE (Low-Density Polyethylene) | Softness, flexibility | Squeeze bottle caps |
| Recycled Materials | Sustainability | Post-consumer recycled content |
Quality Assurance and Testing
Every ZSM custom screw cap mold undergoes rigorous quality assurance procedures :
Precision machining using advanced CNC equipment ensuring micron-level accuracy
Comprehensive testing before shipment validating mold performance
Sample production available for customer approval
Water leakage testing confirming cooling circuit integrity
Detailed documentation including mold drawings, maintenance guides, and spare parts lists
Integration with Complete Packaging Solutions
As a comprehensive packaging machinery provider, ZSM Machinery ensures that our custom screw cap molds integrate seamlessly with our complete product range:
Compatible with our bottle cap injection molding machines for turnkey cap production
Integration with our PET preform systems for complete container and closure solutions
Connectivity with downstream assembly equipment for caps requiring additional components
Turnkey project support including factory layout, installation, and training services
Why Choose ZSM Machinery for Custom Screw Cap Molds?
Specialized expertise: Deep understanding of screw cap design and thread formation requirements with over 10 years of manufacturing experience
Comprehensive cavity range: From 16 to 128 cavities for every production scale
Premium materials: S136 steel, P20 mold base, and other top-grade materials for extended mold life
Advanced hot runner systems: Valve gate technology ensuring clean gate vestige and balanced filling
Automatic unscrewing options: Hydraulic, rack and pinion, and collapsing core mechanisms
Precision engineering: High-quality components ensuring consistent cap quality and reliable sealing performance
Customization capabilities: Tailored solutions for specific neck finishes, tamper-evident features, and branding requirements
Comprehensive support: Design, manufacturing, testing, and after-sales service from experienced engineers
Customer-focused approach: "Customer satisfaction engineering" principle ensuring complete satisfaction with designed products
Global reach: Serving customers worldwide with solutions adapted to local market needs
Partner with ZSM for Custom Screw Cap Mold Excellence
ZSM Machinery's Custom Screw Cap Molds represent the ideal solution for manufacturers seeking precision, reliability, and efficiency in threaded closure production. By combining specialized design features, advanced hot runner technology, premium materials, and comprehensive quality control, we help our customers achieve superior competitiveness in the global packaging market.
Whether you're establishing a new cap production facility, expanding existing capacity, or seeking custom mold solutions for specific screw cap designs, ZSM Machinery has the expertise and technology to support your success .
Contact ZSM Machinery today to discuss your custom screw cap mold requirements and discover how our precision-engineered solutions can enhance your manufacturing operations.
