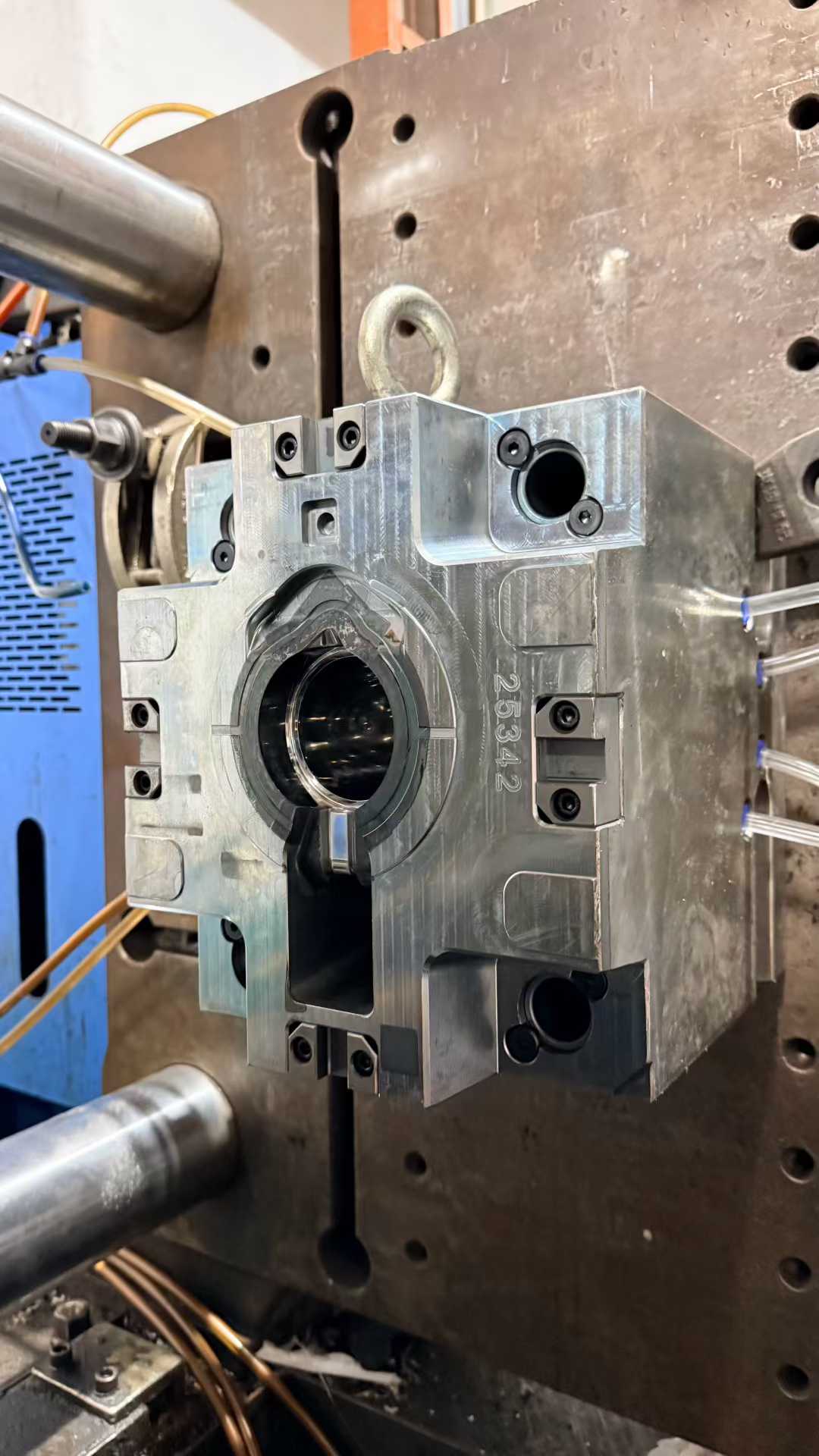

Manufacturing Characteristics of PET Kettle with Handle Moulds

The production of PET (Polyethylene Terephthalate) kettles, especially those with integrated handles, presents unique challenges and opportunities in injection moulding. These products require a mould that can precisely form a complex geometry combining the main body and the handle in a single, robust unit. As a leading specialist, ZSM brings critical expertise to the design and manufacturing of these high-performance moulds. The key manufacturing characteristics that define a superior PET kettle with handle mould are as follows:


1. Advanced Hot Runner System:
A critical feature is the implementation of a sophisticated hot runner system. This system ensures that the molten PET material is delivered efficiently and uniformly to the mould cavity. For a kettle with a handle, balanced flow is paramount to prevent weaknesses, sink marks, or internal stresses at the junction between the body and the handle. ZSM utilizes high-precision temperature control in their hot runner systems to guarantee consistent filling and superior part quality.

2. Complex Core and Cavity Design:

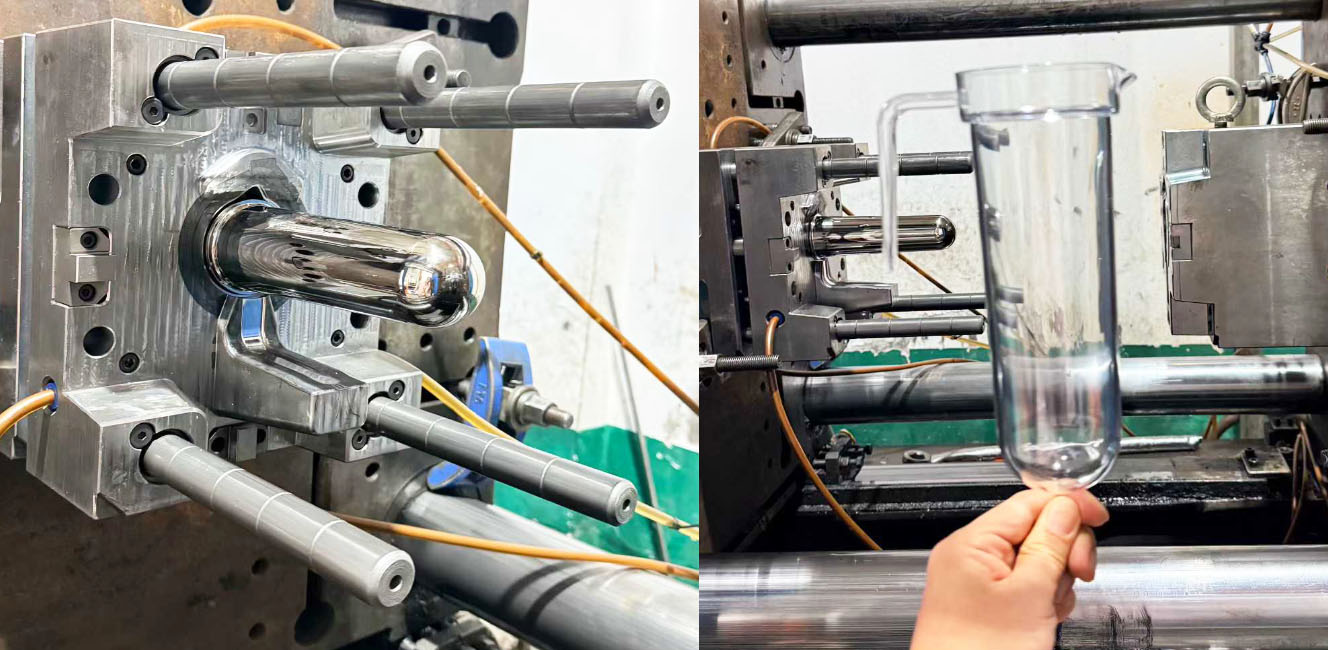

The mould's core and cavity are intricately machined to create the kettle's hollow interior, spout, and the integrated handle. The handle section often requires sophisticated sliding mechanisms or lifters that retract to allow for the ejection of the finished part without damaging the undercuts. ZSM employs state-of-the-art CNC machining and EDM (Electrical Discharge Machining) to achieve the high level of detail, smooth surface finishes, and precise dimensional accuracy required for both aesthetics and functionality.

3. High-Efficiency Cooling Circuitry:
The cycle time and final part quality are heavily influenced by the cooling system. An optimally designed cooling circuit is essential for the thick-walled sections commonly found in the handle and base of the kettle. ZSM engineers conformal cooling channels that follow the contours of the mould, ensuring rapid and uniform heat extraction. This minimizes cycle times, reduces warpage, and enhances the crystallinity of the PET for better strength and thermal resistance.

4. Robust Venting and Ejection System:
Trapped air can cause burns or short shots in the final product. Properly placed venting grooves are strategically integrated into the mould design, particularly in the deep sections and the handle area, to allow air to escape during injection. Furthermore, a reliable ejection system, often incorporating a combination of ejector pins, sleeves, and blades, is designed to gently but firmly push the finished kettle out of the mould without leaving marks or causing deformation.

5. High-Grade Mold Steel and Surface Treatment:
Given the abrasive nature of PET materials and the high production volumes typical for kettle manufacturing, the mould must be exceptionally durable. ZSM constructs these moulds from premium hardened steels, such as H13 or stainless steel, which offer excellent wear resistance and longevity. Additional surface treatments like nitriding or PVD coatings are often applied to further enhance hardness, corrosion resistance, and release properties, extending the mould's service life.


Why ZSM is Your Ideal Partner

ZSM is a professional manufacturer specializing in preform moulds and complex injection moulds like those for PET kettles. Our expertise lies in integrating these advanced manufacturing characteristics into every mould we build. We focus on delivering solutions that offer maximum productivity, exceptional part quality, and long-term reliability for our clients worldwide. By choosing ZSM, you invest in a partnership dedicated to precision engineering and manufacturing excellence.
